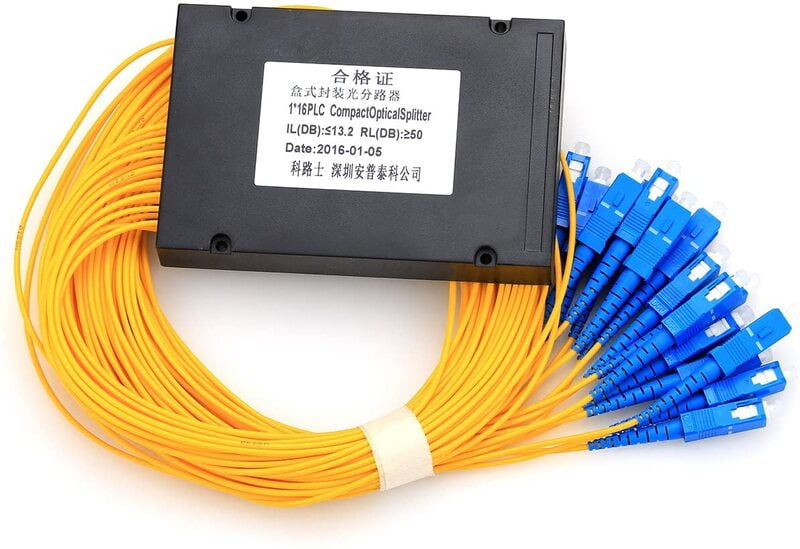

1*16 Fiber Optical PLC Splitter in ABS Box (With Connector)
1x16 Optical PLC Splitter
Compact ABS Box Design
Suitable for GPON, EPON, FTTX, and CATV network systems
- Buy from 2 to 19 products @ Rs.850.00 per item
- Buy above 20 @ Rs.830.00 per item
Choose Quantity
Wavelength | 1260nm / 1650nm |
Type | 1 x 16 |
Fiber Type | Corning SMF-28e Fiber |
Insertion Loss (dB) Max | <14.0 |
Uniformity (dB) Max | <1.5 |
PLD (dB) Max | <0.3 |
Directivity Min | 55dB |
Return Loss (dB) Min | 55 (50) |
Operating Temperature | -40 ~ +85?C |
Power Handling | 300mW |
PLC Fiber Optic Splitter -
The 1x16 Fiber Optical PLC Splitter in ABS Box with Connector is a reliable and efficient solution for distributing optical signals evenly to up to 16 outputs. Designed for high-performance networks, it features low insertion loss, ensuring minimal signal attenuation over long distances. The robust ABS box provides durable protection for internal components, making it suitable for varied environmental conditions. With pre-installed connectors, this splitter offers hassle-free installation and maintenance. It is compatible with GPON, EPON, and other passive optical networks, making it an ideal choice for applications such as Fiber-to-the-Home (FTTH), Passive Optical Networks (PON), Cable TV (CATV) systems, Local Area Networks (LANs), and testing equipment setups. This versatile splitter ensures stable performance, making it perfect for telecom, data center, and network distribution needs.
Features & Specifications
1 x Input Fibers
16 x Output Fibers
Unconnectorized
Ruggedized 2mm Jacket
Length: 1.5 Meter Legs
ABS Box Type Module
Plug and Play Ready
Low Insertion Loss
Low Polarization Dependent Loss
Good channel-to-channel uniformity
Excellent Environmental Stability
Telcordia GR-1221 and GR-1209
Excellent Mechanical Stability
Fiber Optic Splitter Applications
Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive Optical Networks (PON)
Gigabit Passive Optical Networks (GPON)
Local Area Networks (LAN)
Cable Television (CATV)
