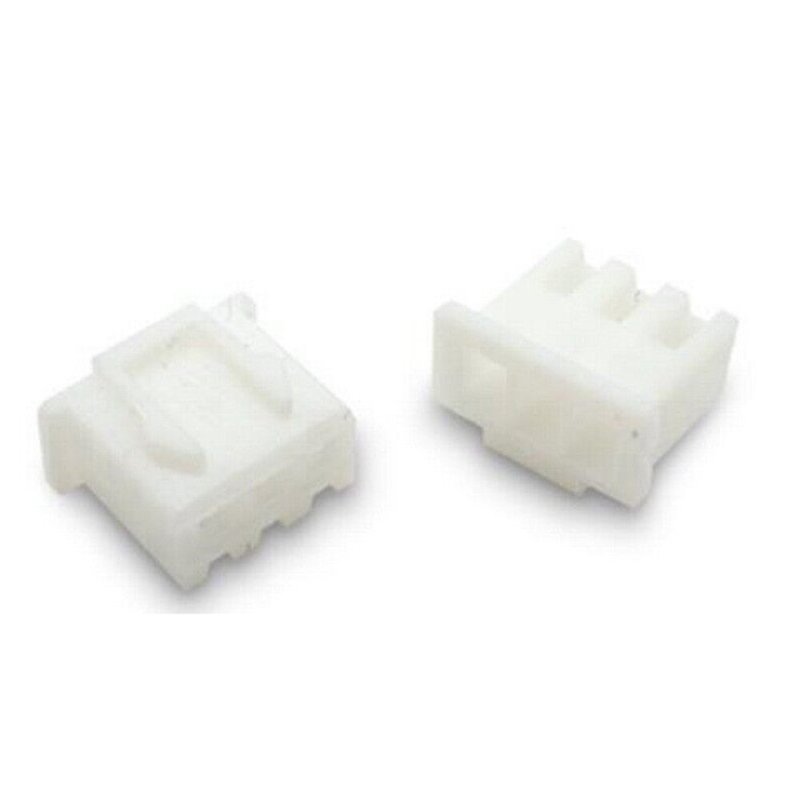

Female JST-XH 2.54mm Connector - Straight Pin Housing for PCB Applications
Series: XH
Type: Shrouded Header, Straight
Part Number: 2515 (Series specific)
Choose Quantity
2515 JST XH Series Dis-Connectable Crimp Style Shrouded Header Straight Connectors
The JST XH Series 2515 Dis-Connectable Crimp Style Shrouded Header Straight Connectors are highly reliable and widely used connectors known for their compact design and versatile applications.
Features :
Shrouded Design: The connectors feature a shrouded header which provides protection against misalignment and ensures secure mating with the corresponding housing.
Compact Size: Designed for use in high-density applications, the connectors offer a compact form factor without compromising performance.
Crimp Style: These connectors are designed to be used with crimp terminals, which allows for secure and reliable electrical connections.
Straight Orientation: The pins are arranged in a straight configuration, which is suitable for various PCB layout designs.
Electrical Specifications :
Current Rating: Up to 3A per contact
Voltage Rating: 250V AC/DC
Contact Resistance: Maximum of 20 mΩ
Insulation Resistance: Minimum of 1000 MΩ at 500V DC
Withstanding Voltage: 1000V AC/minute
Mechanical Specifications :
Contact Material: Phosphor bronze with tin plating
Housing Material: Nylon 66, UL 94V-0 rated
Pitch: 2.5mm (0.098 inches)
Environmental Specifications :
Operating Temperature Range: -25°C to +85°C
Applications:
Consumer Electronics: Ideal for connections in consumer electronic devices such as TVs, audio systems, and appliances.
Industrial Equipment: Used in industrial machinery for reliable power and signal connections.
Automotive: Suitable for automotive applications due to its robust design and reliable performance.
Medical Devices: Employed in medical devices where compact and reliable connections are crucial.
Advantages:
Reliability: The shrouded design ensures a secure connection and prevents improper mating.
Versatility: Available in a variety of positions to fit different application needs.
Ease of Use: Crimp style makes for easy assembly and maintenance.
