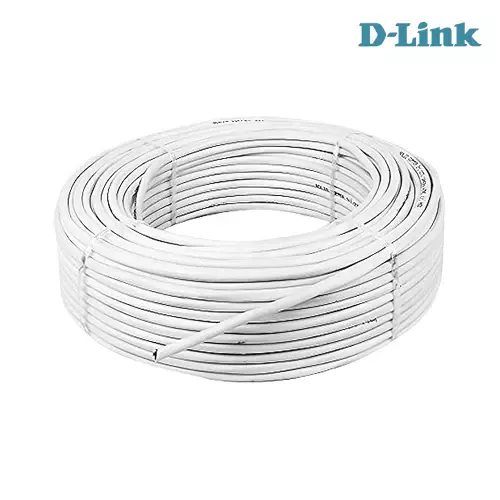

D-Link CCTV Standard Cable (3+1), 90MTR
Features:
- Flame retardant cable
- Complete reliability
- High quality copper wire
- Supports hybrid cable
- Shielded Communication Cable
- Copper cladding aluminum (CCA) braiding
Rs.1,249.00 Rs.2,599.00
Choose Quantity
Product Details
| Insulation Material | PVC Type A (Conductor) |
| Color | Natural / Black (Coaxial Cable),Red,Yellow,Grey (Core) |
| Conductor | Copper (Coaxial Cable) |
| Number Of Conductors | 1 |
| Color and Material of Outer Sheath | FR PVC,White (IEC 60332-1) |
| Cable Diameter | 5.8 +/- 0.4 mm (oval) |
| Jacket Thickness | 0.75 +/- 0.2 mm |
| Dielectric | Solid PE |
| Diameter | 0.60 +/- 0.03 mm (Coaxial Cable),0.12 +/- 0.02 mm (Braid Wire),0.1 +/- 0.02 mm (Strand) |
| Thickness | 1.50 +/- 0.2 mm / 0.45 +/ - 0.02 mm (Coaxial Cable),0.50 +/- 0.2 mm (Conductor) |
| Shield | 6 mm (Copper colour Aluminum Myler tape),CCA Braiding |
| Number of Braiding Wires | 48 |
| Coax Jacket | PVC Type ST1 |
| Insulated Cores | Type A |
