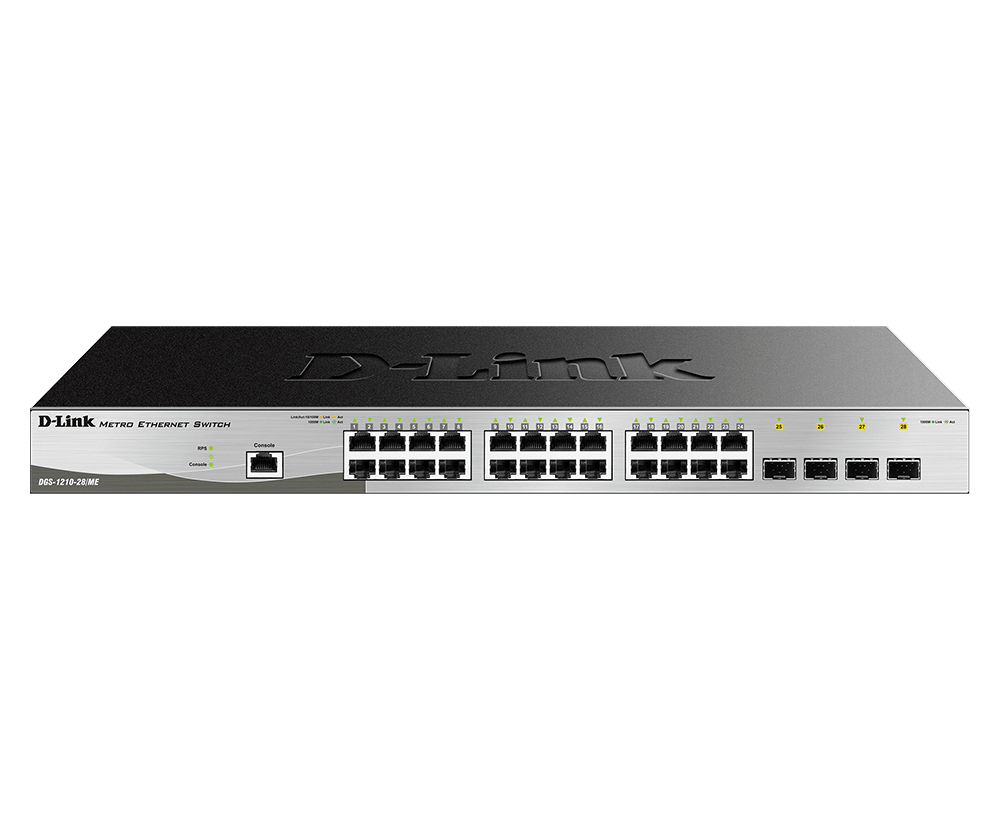

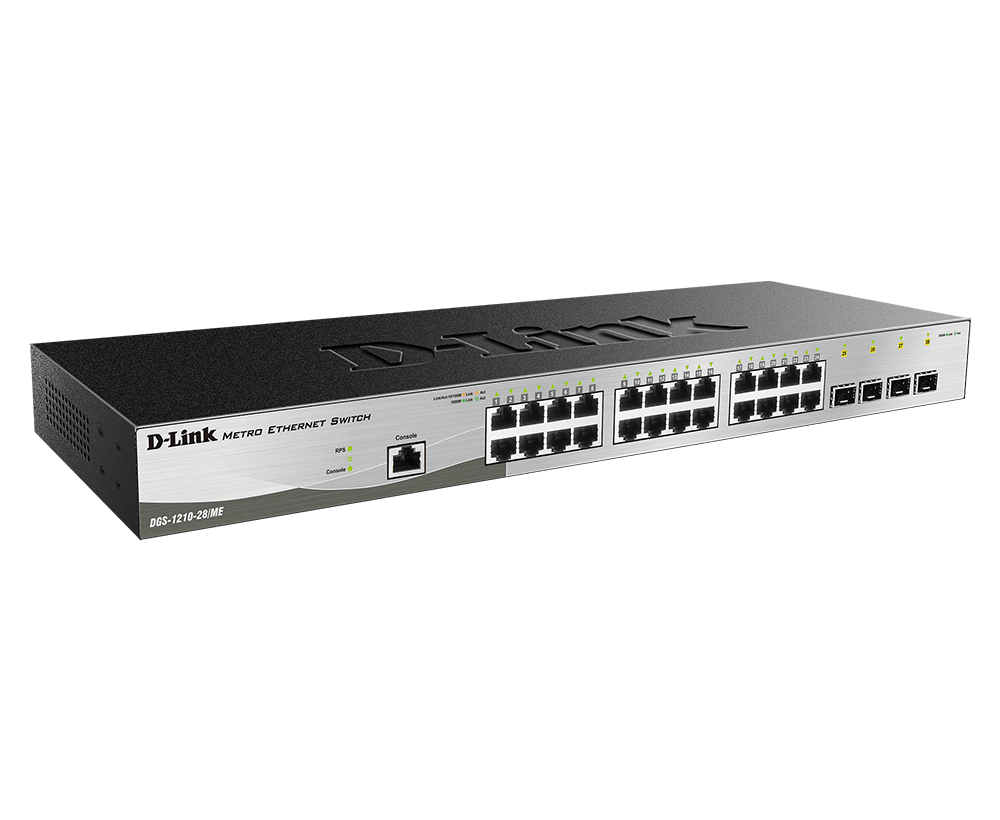

28-Port Gigabit Metro Ethernet Switch

The DGS-1210ME Series is a powerful and reliable Gigabit Metro Ethernet Switch, offering 24 Gigabit Ethernet ports and 4 SFP ports, designed for robust Layer-2 networking with advanced security and management features. Ideal for Metro Ethernet applications requiring high bandwidth, reliability, and security.

Key Features:

• High-Speed Connectivity:

  • 24 x 10/100/1000BASE-T RJ-45 ports for Gigabit Ethernet connections.

  • 4 x SFP ports for flexible fiber optic uplinks.

• Advanced Layer-2 Functionality:

  • Link Aggregation (LACP) for increased bandwidth and redundancy.

  • Port-based Q-in-Q and VLAN trunking for efficient network segmentation.

• Robust Security:

  • IP-MAC Port Binding (IMPB), Access Control List (ACL), and IEEE 802.1X for enhanced network security.

  • D-link Safeguard Engine to help prevent malicious attacks.

• High Reliability & Resilience:

  • Embedded 6kV surge protection for device safety.

  • Sub-50ms recovery ERPS (Ethernet Ring Protection Switching) for network continuity.

  • Dying Gasp to notify network administrators of power failures.

  • IEEE 802.1D, 802.1w, and 802.1s Spanning Tree Protocols (STP).

• Quality of Service (QoS):

  • IEEE 802.1p QoS with WRR and strict priority queues for optimized traffic management.

• Multicast Support:

  • IGMP snooping, IGMP filtering, and Fast Leave for efficient IPTV and multicast applications.

• Easy Management:

  • User-friendly web interface and DHCP auto-configuration.

  • LLDP (Link Layer Discovery Protocol) for network topology management.

  • Cable diagnostics for remote troubleshooting.

• Traffic & Bandwidth Control:

  • Ingress and egress bandwidth control with fine granularity.

  • Port mirroring for traffic monitoring and diagnostics.

Applications and Uses:

• Metro Ethernet Networks: Ideal for service providers deploying high-bandwidth connectivity to businesses and residences.

• Enterprise Networks: Suitable for businesses requiring robust Layer-2 switching with advanced security and management features.

• IPTV and Video Distribution: Supports multicast applications with IGMP snooping and filtering.

• VoIP Deployments: Prioritizes voice traffic with QoS features for clear and reliable communication.

• Surveillance Systems: Provides reliable network connectivity for IP cameras and video recorders.

• Industrial Environments: The surge protection and resilient features make it suitable for harsh environments.

• Expanding Network Capacity: the SFP ports allow for easy expansion of network reach via fiber optic cabling.

Benefits:

• Enhanced network performance and reliability.

• Improved network security and access control.

• Simplified network management and troubleshooting.

• Scalable and flexible network deployment.

• Cost effective Metro ethernet solution.
