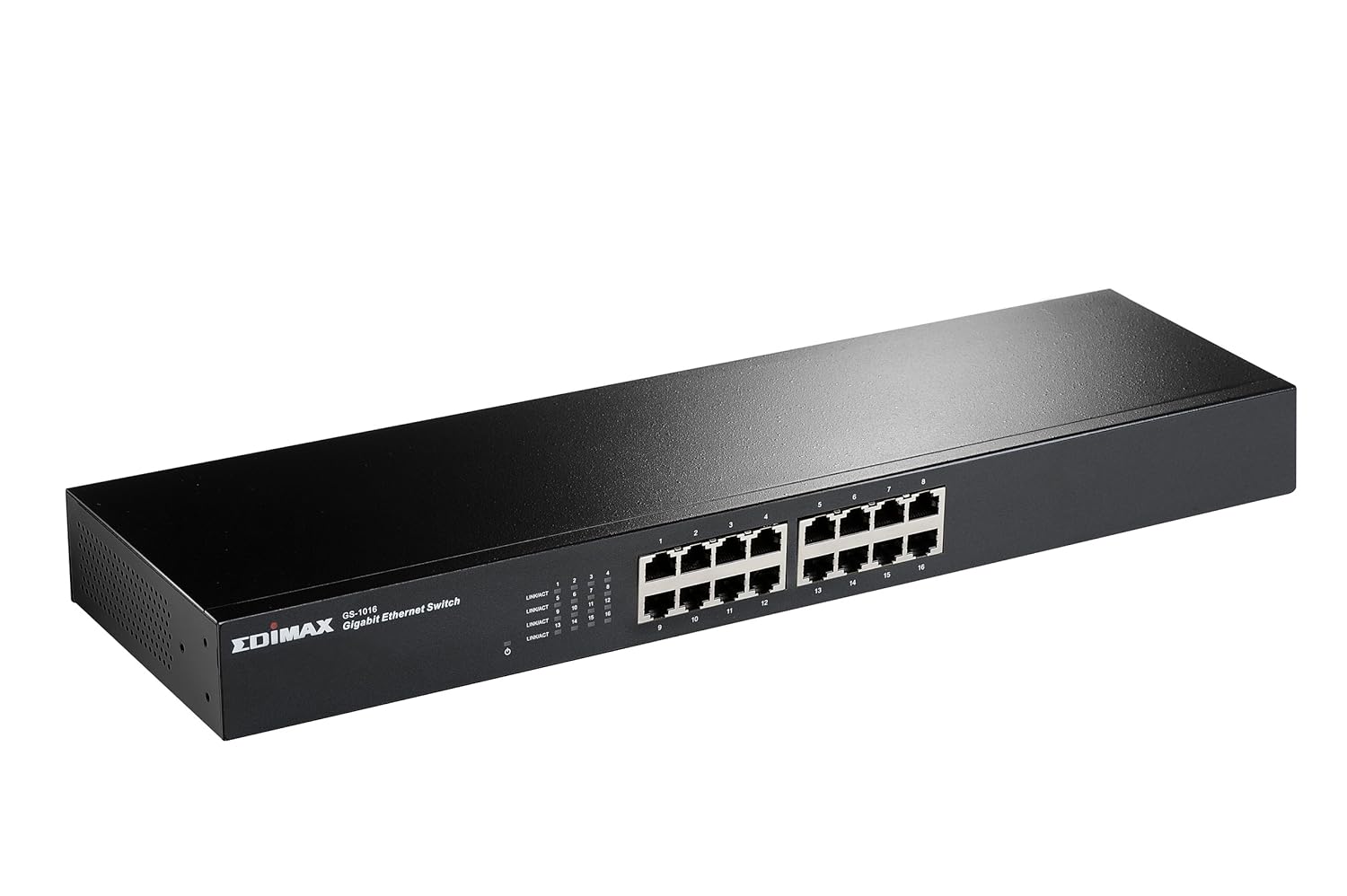

Edimax (GS-1016) 16 Port Gigabit Rack-mount Switch
16 Gigabit Ethernet RJ-45 ports
Wire-speed packet filtering and forwarding rate
Supports IEEE802.3az energy efficient Ethernet function
Supports auto MDI/MDI-X crossover detecting and auto correction
Supports full and half duplex for 10/100Mbps, and full duplex for 1000Mbps
Choose Quantity
Brand | EDiMAX |
Number of Ports | 16 |
Included Components | Guide, Port Gigabit Switch, Charger and Accessories Package |
Compatible Devices | Desktop |
EDIMAX 16-Port Gigabit Rack-mount Switch -
Boost your network’s performance with the GS-1016 16-Port Gigabit Rack-Mount Switch, designed for medium to large network environments. Perfect for expanding your Gigabit network, this switch offers high-speed connectivity, reliable performance, and power-saving features, all packed into a sleek, space-saving 19" rack-mountable form factor.
Key Features:
Energy Efficient Ethernet (EEE) Compliance: Save up to 70% in power consumption with built-in energy-saving functions, helping businesses cut costs and promote sustainability.
Inactive Link Detection: Automatically reduces power usage when inactive network devices or links are detected, optimizing energy consumption based on device activity.
Cable Length Detection: Adjusts power usage based on the length of connected Ethernet cables, ensuring more efficient energy use for shorter cables.
Gigabit Speeds & Jumbo Frame Support: Supports high-speed networking and Jumbo Frames (up to 9K) to enhance network efficiency, especially during large file transfers.
Fan-less Design: Operates quietly without a fan, making it ideal for small office or SOHO (Small Office/Home Office) environments.
Auto-Negotiation: Each port automatically detects and adjusts speed for optimal performance across 10/100/1000Mbps devices.
Non-Blocking Wire Speed: With a 2000Mbps full-duplex mode per port, the GS-1016 ensures smooth, seamless data transmission and high-speed connectivity.
Store and Forward Architecture: Filters bad network packets like fragments and CRC errors, ensuring clean data transmission and maximizing network performance.
Applications and Uses of the GS-1016:
Small to Medium Businesses (SMBs): Network expansion, cost-effective upgrade to Gigabit speeds.
Home Office/SOHO: Quiet operation, high-speed internet and file sharing.
Data Centers/Server Rooms: High-speed connectivity, non-blocking performance for servers and workstations.
Educational Institutions: Classroom connectivity, energy efficiency, reduced costs.
VoIP & IP Surveillance: Stable VoIP connections, reliable performance for IP cameras.
Media Production: Fast file transfers, high-bandwidth support for video editing and sharing.
Retail/POS Networks: Reliable POS system connectivity, quick data synchronization.
IoT Devices: Connectivity for IoT systems, smart devices, and automation.
Backup & Disaster Recovery: Reliable connection for backup servers, seamless data access.
This switch is perfect for a variety of networking environments, from businesses and home offices to data centers and media production.
