Fiber Optic Pigtail Cable

Enhance your fiber optic network's performance with our high-quality Fiber Optic Pigtail L1 cables, designed for fast and reliable connections in various applications. These pigtails are available in both single-mode and multimode configurations, featuring a range of connector types to suit your specific requirements.​

Key Features:

• High-Quality Construction: Manufactured with premium materials to ensure durability and optimal signal transmission, reducing insertion loss and maintaining network integrity.​

• Connector Options:

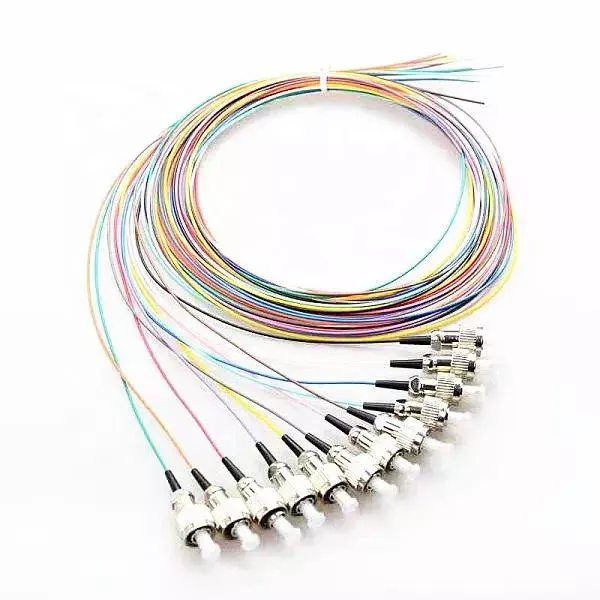

  • FC/PC (Ferrule Connector/Physical Contact): Known for its threaded coupling mechanism, providing secure and stable connections, ideal for laboratory and industrial settings.​

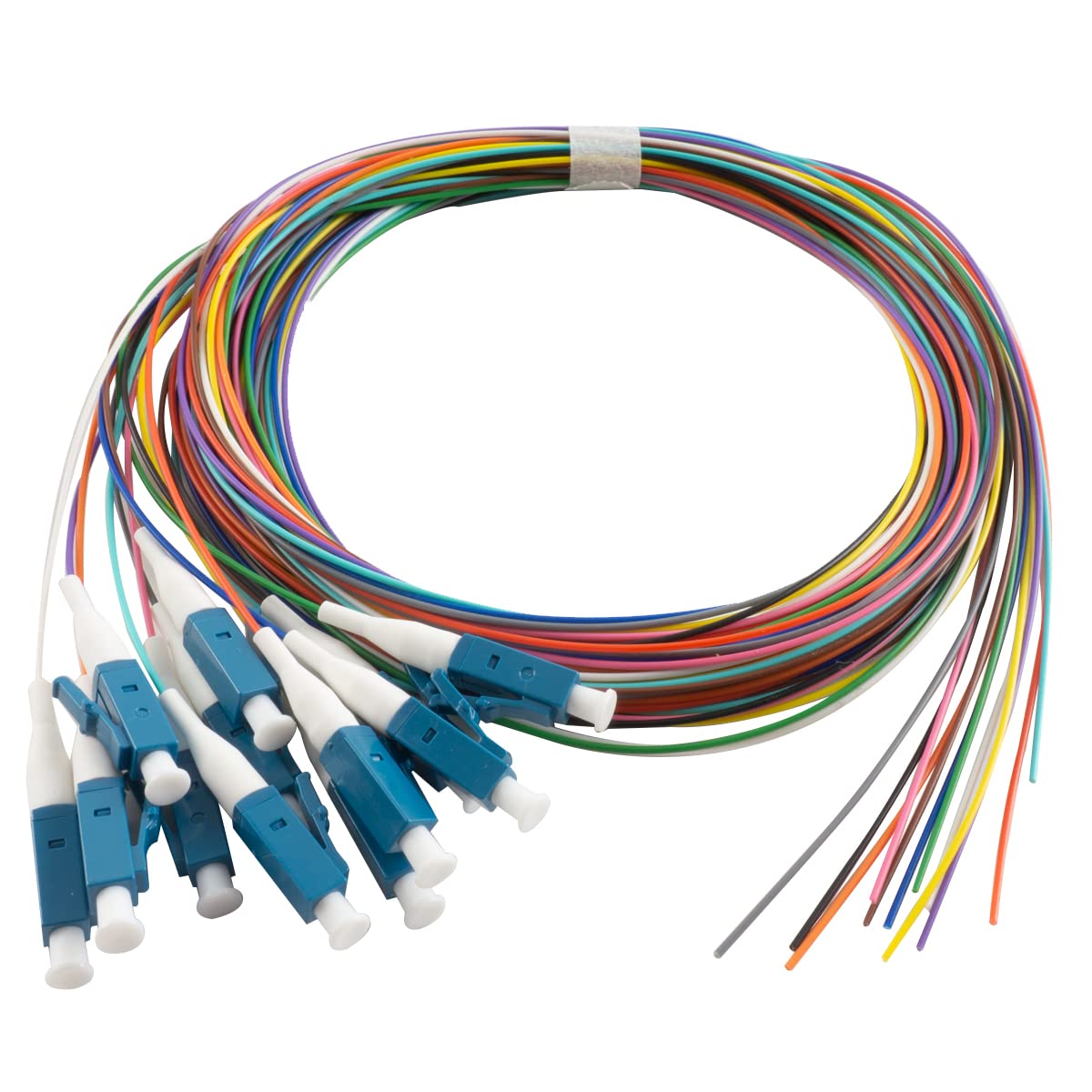

  • LC/PC (Lucent Connector/Physical Contact): Features a compact design with a push-pull latching mechanism, suitable for high-density networking environments.​

  • SC/APC (Subscriber Connector/Angled Physical Contact): Utilizes an angled end-face to minimize back reflection, perfect for high-precision applications like telecommunications and CATV networks.​

  • SC/PC (Subscriber Connector/Physical Contact): Employs a snap-in push-pull coupling mechanism, commonly used in datacom and telecom applications.​

• Performance Specifications:

  • Insertion Loss: Typically ≤0.3 dB, ensuring minimal signal loss.​

  • Return Loss:

    • PC Connectors: ≥50 dB

    • APC Connectors: ≥60 dB

• Fiber Types:

  • Single-Mode (OS2): Suitable for long-distance transmissions with a core diameter of 9 µm.​

  • Multimode (OM2/OM3/OM4): Ideal for shorter distances with core diameters of 50 µm or 62.5 µm, supporting high data rates.​

• Cable Specifications:

  • Diameter: 0.9 mm tight-buffered coating for protection and flexibility.

  • Length: Standard lengths of 1 meter (3.28 feet), with customizable options available upon request.​

  • Jacket Material: LSZH (Low Smoke Zero Halogen) to reduce toxic emissions in case of fire.​

Applications:

• Telecommunications: Ensures efficient signal transmission in telecommunication networks.​

• Data Centers: Facilitates high-speed data transfer and reliable connections in data center infrastructures.​

• FTTH (Fiber to the Home): Supports last-mile connectivity, delivering high-speed internet to residential users.​

• CATV Networks: Provides stable signal distribution in cable television networks.​

Compliance and Standards:

• Meets or exceeds industry standards such as IEC, TIA/EIA, and RoHS compliance, ensuring safety and reliability.
