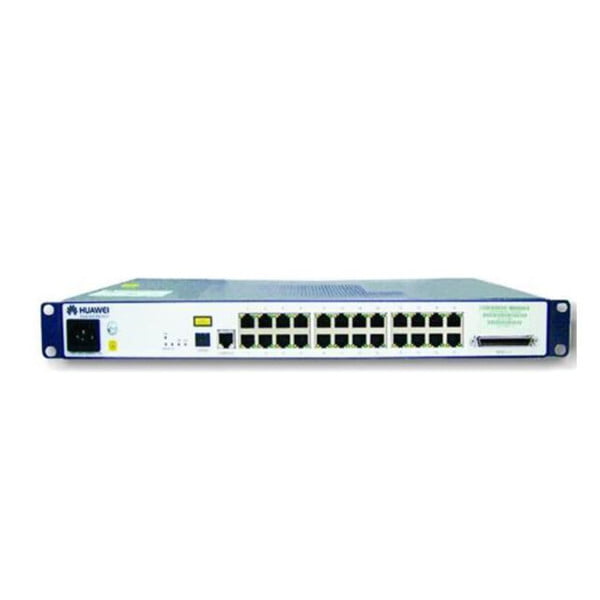

Huawei MA5620 24 Port Gigabit Fiber Switch ,GPON/EPON ONT with 24 Ethernet & Voice Ports for FTTB
Uplink/Downlink Support
Strong QoS Management
High-Performance IPTV
Voice Service Features
Carrier-Class Multicast
Flexible Service Mapping
Bandwidth Management
Choose Quantity
Brand | Huawei |
Model | MA5620 24 Port |
Dimensions (H×W×D) | 43.6mm×442mm×220mm |
Network-side port | Each of them provides two uplink ports that use the SFP optical modules and automatically adapt to GPON and GE modes. The two uplink ports can be configured as follows: |
2×GPON | |
2×GE (optical) | |
1×GE (optical) + 1×GPON | |
24×FE + 16×POTS | |
Operating temperature | -40oC to 55oC; startup at -25oC |
Humidity | 5% to 95% (non-condensing) |
Heat dissipation mode | No fans; passive cooling |
Power supply | AC: 220V/110V |
Lightning protection capability | LAN: 6kV; POTS: 4kV |
Huawei MA5620 24 Port: High-Performance MDU for FTTB and FTTC
The Huawei MA5620 24 Port is a versatile and high-performance multi-dwelling unit (MDU) designed for deployment in Fibre to the Building (FTTB) and Fibre to the Curb (FTTC) environments. Here's a breakdown of its key features and capabilities:
Key Features:
Uplink and Downlink Support:
Uplink: The device supports an SFF optical uplink port, which facilitates GPON (Gigabit Passive Optical Network) upstream transmission.
Downlink: It features 24 Fast Ethernet (FE) electrical ports, enabling efficient service delivery to end-users.
Quality of Service (QoS):
The MA5620 has robust QoS capabilities that ensure efficient bandwidth management through Dynamic Bandwidth Allocation (DBA). It also supports flexible service mapping and accurate service management, ensuring that different users get an optimized service experience.
These features are crucial for environments where multiple services (e.g., internet, VoIP, IPTV) are delivered concurrently.
IPTV Service Management:
The device has high-performance IPTV service management capabilities, providing strong service switching, packet forwarding, and high integration. This makes it suitable for delivering carrier-class multicast operations, which is essential for high-quality IPTV services.
Voice Services:
The MA5620 supports both basic voice services (such as voice calls, fax, and modem services) and supplementary services, which include:
Three-way calling
Call waiting
Call transfer
Calling Line Identification Presentation (CLIP)
Calling Number Restriction (CN)
Applications:
The MA5620 is ideal for providing broadband internet, VoIP (Voice over IP), and IPTV services in multi-dwelling units such as apartment buildings, office complexes, and other high-density environments.
It can support a wide range of customer needs, making it suitable for both residential and small business environments.
In short, the Huawei MA5620 24 Port is a high-performing, flexible solution for delivering broadband, IPTV, and voice services, with strong QoS capabilities and efficient management of traffic across the network.
