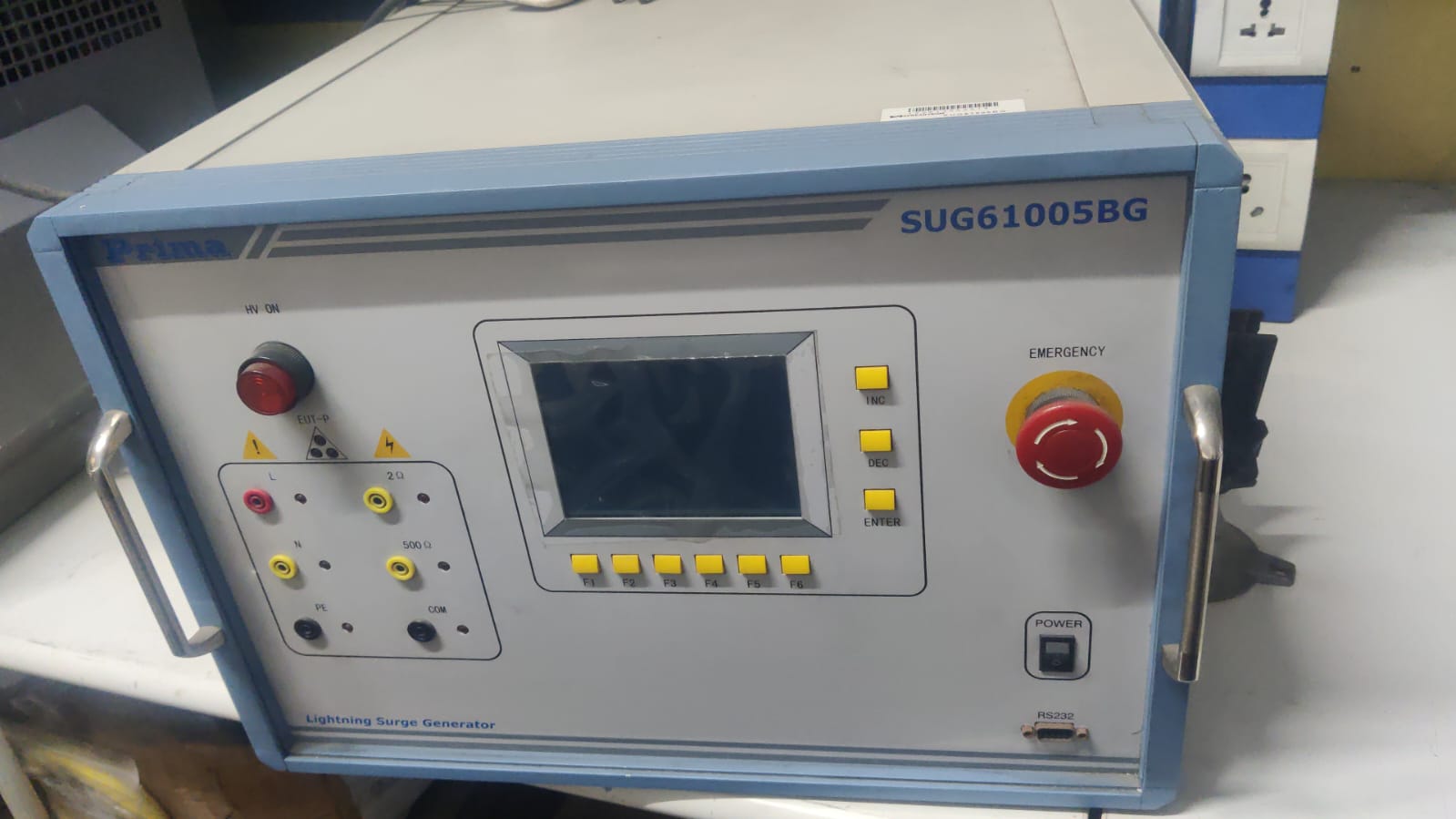

Lightning Surge Generator SUG61005BG EMC testing Output voltage 0-6kv
✅ Surge Generator
✅ Meet the standard:IEC61000-4-5
✅ TUV certified
Technical parameters:
Model | SUG61005BG |
Open -circuit t voltage/short-circuit current | Waveform parameters parameters of Open -circuit t voltage: 1.2/50 μ s , 0.2~ 6kV |
Surge polarity | Positive / Negative/Asynchronism |
Phase | Synchronism 0 °~ 360 °selectable/Asynchronism |
Output impedance | Complex impedance: 2 Ω |
Coupling path | Built-in, one phase three line,,max 16A |
Surge count | 1~9999 |
Surge interval | 10~999S |
Working power supply | AC220V 50/60Hz |
Ambient temperature | 15°C~35°C |
Outline dimensions | 480×520×320 |
The SUG61005BGLightning Surge Generator is a precision instrument designed for rigorous EMC (Electromagnetic Compatibility) testing. With an adjustable output voltage range of 0-6kV, this generator accurately simulates lightning surge effects, ensuring your electronic devices and systems meet stringent international standards. Ideal for product development, compliance testing, and quality assurance, the SUG61005BG provides reliable and repeatable surge testing.
Key Features:
0-6kV Adjustable Output Voltage: Provides precise control over surge voltage levels for comprehensive testing.
EMC Testing Capabilities: Specifically designed for electromagnetic compatibility testing to ensure product resilience.
IEC Compliance: Engineered to meet and exceed relevant IEC standards for lightning surge testing.
High-Accuracy Surge Simulation: Delivers accurate and repeatable surge waveforms for reliable test results.
User-Friendly Interface: Intuitive controls and clear display for easy operation and monitoring.
Robust Construction: Durable design ensures long-lasting performance in demanding testing environments.
Safety Features: Integrated safety mechanisms protect both the operator and the equipment under test.
Benefits:
Ensure Product Compliance: Confidently meet EMC standards and regulations for lightning surge protection.
Improve Product Reliability: Identify and address potential weaknesses in your designs through thorough testing.
Reduce Development Time: Streamline your testing process with accurate and efficient surge simulation.
Enhance Product Quality: Validate the durability and robustness of your products under simulated lightning conditions.
Minimize Risk: Proactively identify and mitigate potential failures caused by lightning surges.
Ideal For:
Electronics manufacturers
EMC testing laboratories
Product development teams
Quality assurance departments
Telecommunications equipment testing
