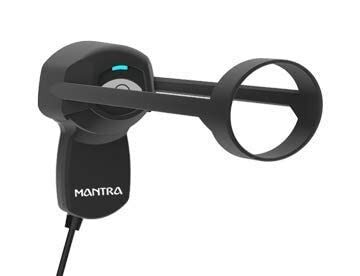

Mantra MIS100V2 Single IRIS Scanner | Portable Corded IRIS Scanner with RD Service
Plug & Play USB 2.0 with High Speed Interface
Lower FAR and FRR
STQC Certified Product
Supports Android Operating Systems
Supports WindowsOperating Systems
Supports Linux Operating Systems
Choose Quantity
Parameter | Specification |
|---|---|
Spatial Resolution | > 50% @ 1.0 LP/mm |
Pixel Resolution | > 10 pixels/mm |
Image Margins (Left & Right) | >= 0.6x IRIS radius |
Image Margins (Top & Bottom) | >= 0.2x IRIS radius |
Imaging Wavelength | 700-900 nm |
Pixel Depth | 8 bits/pixel |
Output Image | KIND1 to KIND7 with JPEG2000 Compression |
Capture Mode | Auto Capture with Built-in Quality Check |
Capture Time | < 2 seconds |
Safety | Exempt Group per IEC 62471:2006-07 |
Health-Safety | RoHS Compliant |
ESD (Air Discharge) | ±8 KV |
ESD (Contact Type) | ±4 KV |
Radiated Emission | FCC Part 15B/IEC: CISPR 22 Class B Standard |
Radiated Immunity | As per IEC/EN 61000-4-3:2006+A2:2010 |
Connectivity | USB 2.0 |
Operating System Support | Windows XP, Win7, Win2008, Android, Linux, Embedded Linux |
Single IRIS Sensor MIS100 V2 :
MIS100V2 is high quality USB IRIS Sensor for IRIS Authentication to access desktop or network security. Single IRIS Sensor MIS100V2 can be used
extensively for identity applications like Aadhaar Authentication, Banking Applications and Access Control Applications. MIS100V2 quality algorithm
can easily identify poor quality IRIS images and can be adjusted easily based on inbuilt LED indications. MIS100V2 works on proprietary distance sensing and focus analysis technology which gives it fast auto capture capabilities.
Applications :
Smart Card Application
AFIS
Health & Medical
UIDAI
Jeevan Pramaan
AEBAS
Skill Development
NREGA
PDS
Time and Attendance
