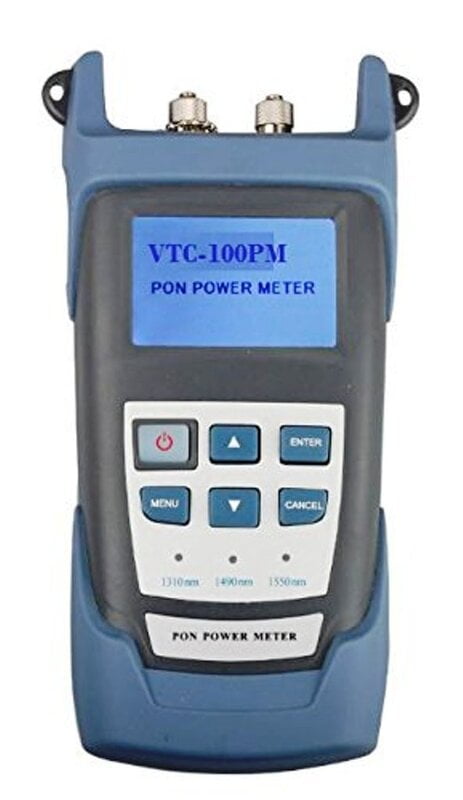

PON Optical Power Meter for EPON GPON xPON, CCTV and FTTx / FTTH ONT / OLT-ONU 1310/1490/1550nm
- PON Optical Power Meter is an upgraded version of RY-P3201 PON power meter
- Six calibration wavelength available when tested as Normal OPM (850, 1300, 1310, 1490, 1550&1625nm). Added VFL Function for quick and efficient fault identification. Data upload via USB cable. 1000 storage test records
- 10 Different threshold sets
- 3 Colors LED light Green, Yellow or Red represent 3 types of signal conditions Pass, Warn or Fail. . Added User self-calibration function in software which used to calibrate the PON module or set the threshold value
- Added Factory Default function in software which enable all the setting back to the factory setting
Product description
Specification:
Item Type: Fiber Optic Power Meter
Material: ABS
Output Optical Power: >10MW
Output Distance: 1-5km
Power Supply: 2 x AA battery (delivery without battery)
Power Measurement Range: -50 to +26dbm
Probe Range: InGaAs
Wavelength Range: 850-1625nm
Standard Wavelength(nm): 850, 980, 1300, 1310, 1490, 1550, 1625
Display Resolution: Linear display 0.1%, logarithmic display 0.01dBm
Working Temperature (??: -10??to +60??br>Storage Temperature (??: -25??to +70??br>Automatic Shutdown Time (min): 10 minutes
Battery Continuous Working Time: Not less than 40 hours
