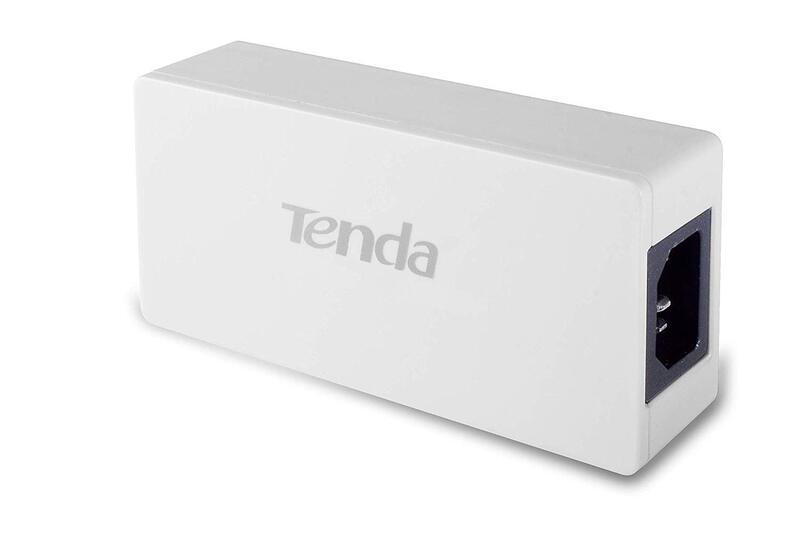

Tenda POE30G-AT Gigabit PoE Injector 30W Output Power | Compliant with IEEE 802.3af/at Standard |Power Distance Extension of up to 100 Meters |Plug and Play
PoE ports supports IEEE802.3at and IEEE802.3af standard
Equipped with gigabit port, blazing-fast tranfer rate, maximum transfer rate of up to 30W for single port
power distance extension of up to 100 meters for standard cat. 5e and cat. 6 Ethernet cable
Plug and play, no any configuration required
Choose Quantity
Network standardsIEEE802.3、 IEEE802.3u 、IEEE802.3ab、IEEE802.3af、 IEEE802.3at
LED IndicatorPWR, PoE
Interfaces1*10/100/1000 Base-T Ethernet Port(Data/PoE)
1*10/100/1000 Base-T Ethernet Port(Data)Transmission mediaRecommended: CAT5/5e UTP or better
Level of protectionESD:Air discharge: ±10kV Contact discharge: ±8kV
Forwarding modeStore-and-forward
Transmission Rate1000Mbps
PoE budgetSingle port: AF: 15.4W, AT: 30WWhole device: 30W
Power consumption30W
Input voltage100－240V AC 50/60Hz51V/0.8A DC（Power Adapter Output）
MountingDesktop mounting: support
The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully conforms to the standard of wtih 802.3, transmitting power through Ethernet cable, the maximum transmission distance can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power. In addition, the device can be used for Ethernet device IEEE802.3af/ compatible PoE power applications such as wireless AP, VoIP phone and web CAM. The power supply of Ethernet cable not only provides system reliability, traditional power grid expansion, but also simplifies the deployment of power lines.
